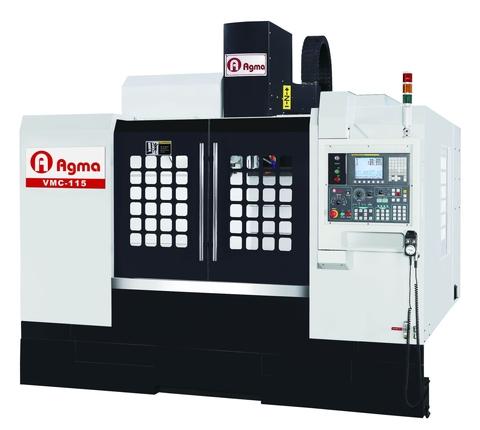

Agma brand VMC-115 Vertical Machining Center is the heavy-duty cutting and high rigidity box way model best suited for aerospace industry and mold industry. This machine could be loaded in 40'HQ container to save your ocean freight.
VMC-115: X/Y/Z 1,100/550/580mm
BT-40 Arm type 24 tools ATC (standard)
BT-40 Belt Driven 8,000 rpm (standard)
BT-40 Belt Driven 10,000 rpm (option)
BT-40 Direct Driven 10,000/ 12,000/15,000 rpm (option)
• AGMA hardened box way machines are designed for rigidity and heavy-duty cutting. The machine structures are exclusively made to absorb and dampen cutting-induced vibrations; yet the machine's agility is better than most linear-way type machines on the market. In order to support our customers' needs, AGMA has built a support network specifically in special material cutting applications. This allows us to offer our clientele the best solution to their applications. Customer satisfaction is always AGMA's first priority.

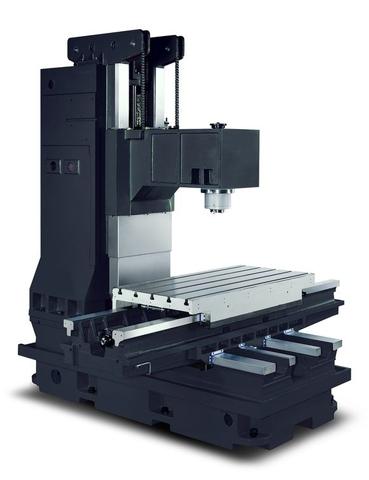

• All three axes have a hardened box-way design. In addition, the spindle headstock, column, saddle, base, and table are all made of high rigidity Meehanite cast iron (FC30) with stress relieved to ensure maximum accuracy and absolute rigidity.
• All slide-ways are heat-treated and precision ground to maintain high precision.
• Double guide ways and a counter-balanced design prevent unexpected vibration from the Z-axis drive, which helps achieve a quality surface finish.
• Strategically placed ribs help enhance the spindle headstock structure. The spindle headstock also has the proper proportion of contact with the column, which creates strong spindle support.
• The base of VMC-115 has 4 hardened box ways that allow greater stability and accuracy even with heavy loading. In essence, the design fully supports the saddle and table along the entire travels lengths of the X and Y axes.
• Ø40/40/40mm high class double nut ballscrew provides strong rigidity, high torque, better accuracy, long-life, and effectively heat extension control
