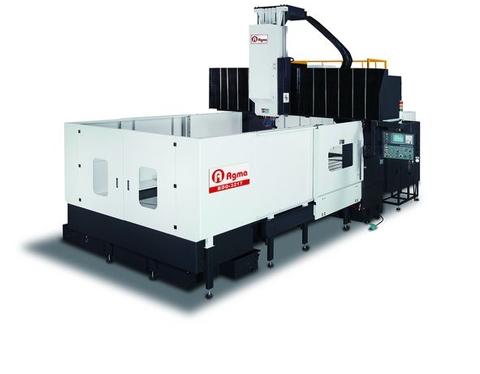

Agma brand (Bridge-Type) Double Column Vertical Machining Center Model BDO-3217. High-Rigidity, High Precision & High-Efficiency Design Concept.
High-Rigidity

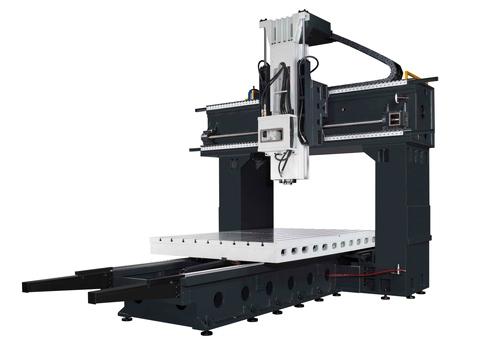

● The one-piece construction base with modular box design and optimum support maintains the machining accuracy.
● The construction base with optimum rigidity support design is proved by ultimate analysis that can guarantee maximum loading on worktable and heavy duty cutting.
High-Precision
● The spindle position is designed with symmetrical to center that provides stability of temperature level. Moreover, the short transmission system design reduces the heat conduction and extends the machine's life expectancy.
● X-axis and Y-axis is adopted THK linear roller guide ways.
High Horsepower, High Rotational Speed, High Stability
● 35-HP spindle motor, 6,000 RPM two-steps automatic change gear box.
● Output torque of 642Nm (ZF gear box), offers capability of low-speed heavy
cutting and high-speed precision cutting with extensive process range. (For demand of higher torque, please contact with our sales department).
BDO-3217 Travel: 3,200*1,600*1,000mm; Distance between column: 1,760mm. Table size: 3,000*1,500mm; Max. table load: 6,000kgs. BT-50 Gear 6000rpm; Fanuc 0iMF
Machine Dimension: 8,530*5,100*3,900mm; Machine Weight: 28,000kgs
